Cast Resin Joints For Armoured Cables
Specialised in branch cable joints for 20 years
Insulated, flame retardant, fire resistant, waterproof, wide range of uses
Suitable for main cable 95~240mm, branch cable 6~70mm
Rated voltage 0.6/1kV
Advanced technology, reusable
No need to cut the main cable, no need to reserve lengths
Flexible installation position
Saves 2-3 metres of main cable, labour costs and time
Complies with international safety and security standards and GB/T 14048.7-2016.....
Low overall cost, high cost performance

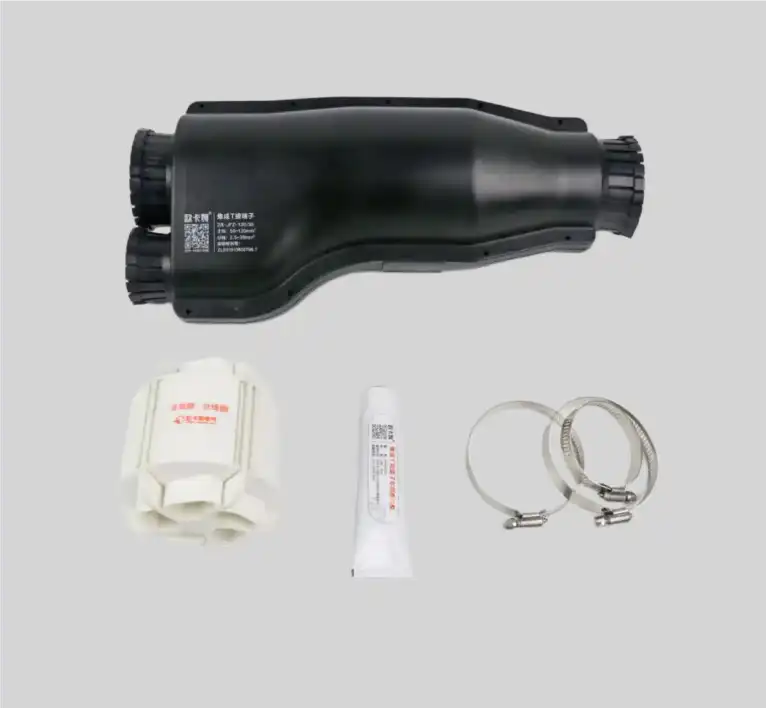

Cast Resin Joints For Armoured Cables
Xi'an OUKAMU Power Technology Co., Ltd. specializes in Cast Resin Joints For Armoured Cables, offering innovative solutions backed by 20 years of expertise and over 150 national invention patents. Our model ZR-JFZ-240/70 supports main cables from 95~240mm² and branch cables from 6~70mm², rated at 0.6/1kV. These joints eliminate the need to cut main cables, saving 2-3 meters of cable per installation while maintaining full load capacity. Successfully deployed in over 10,000 projects including Hong Kong-Zhuhai-Macao Bridge and multiple metro systems, our solutions deliver IP68 waterproof protection, flame retardant performance, and fire-resistant capabilities. Advanced resin encapsulation technology ensures reliable operation in underground burial, cable wells, and complex infrastructure environments.
What Are Cast Resin Joints For Armoured Cables?
Cast resin joints are a particular type of connection method for the low voltage power distribution networks with armoured wires. These couplings utilise two-part polyurethane or epoxy resin castings to effect waterproof, insulated, connections between the main wires and branch circuits.
Our resin couplings allow branches to be joined without having to cut the main conductor as is the case with traditional jointing methods. It keeps the original current-carrying capacity and mechanical strength of the cable, and considerably reduces the time of installation and material waste.
The resin casting method offers for complete encapsulation of all electrical connections. This creates a long-lasting barrier to moisture, dust and environmental pollutants that provides long term reliability in tough applications.
Key Features and Technical Advantages
Flexible Onsite Installation
Our branch joints can be installed wherever you choose – no need to pre-measure or customise. The branch location can be flexibly adjusted during installation, making installation speedier and more adaptive to real-world settings.
This flexibility is essential when dealing with existing infrastructure or during development when alterations are required. You save a lot of time compared to traditional methods, which require perfect measurements and pre-made parts.
Waterproof Protection
We have the built-in sealing design on the joints with IP68 protection certified. The complete resin encapsulation guarantees no water infiltration even in continuous immersion, which makes them excellent for underground direct burial, cable wells and flood prone areas.
Its waterproof characteristics allows for safe operation in tunnels, basements and outdoor installations where exposure to moisture is inevitable. Your electrical system is protected for the life of the service.
Flame Retardant and Fire Resistant Options
OUKAMU also offers specialised fire-resistant versions that exceed higher safety standards. These couplings provide electrical integrity during fire exposure and also buy essential time for emergency reaction and evacuation.
Flame retardant qualities meet the specifications of GB/T 14048.7-2016 and international safety standards. You may be confident your installation complies with the rigorous fire safety requirements for commercial and public buildings.
Cost Effective Solution
By avoiding the need to cut main wires you save 2-3 meters of pricey armoured cable at each connection point. Less technical skill and time are needed for streamlined installation procedures, so labour expenses are substantially reduced.
Maintenance free design which reduces long term operational costs. After installation these joints do not require frequent inspection or service, thus minimising the total cost of ownership over the life of the system.
Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors) (mm²)
|
Technical Parameters
|
||||
|
Main Cable
(2~5 Cores)
|
Branch Cable
(2~5 Cores)
|
Rated Voltage(kV)
|
Rated Current(A)
|

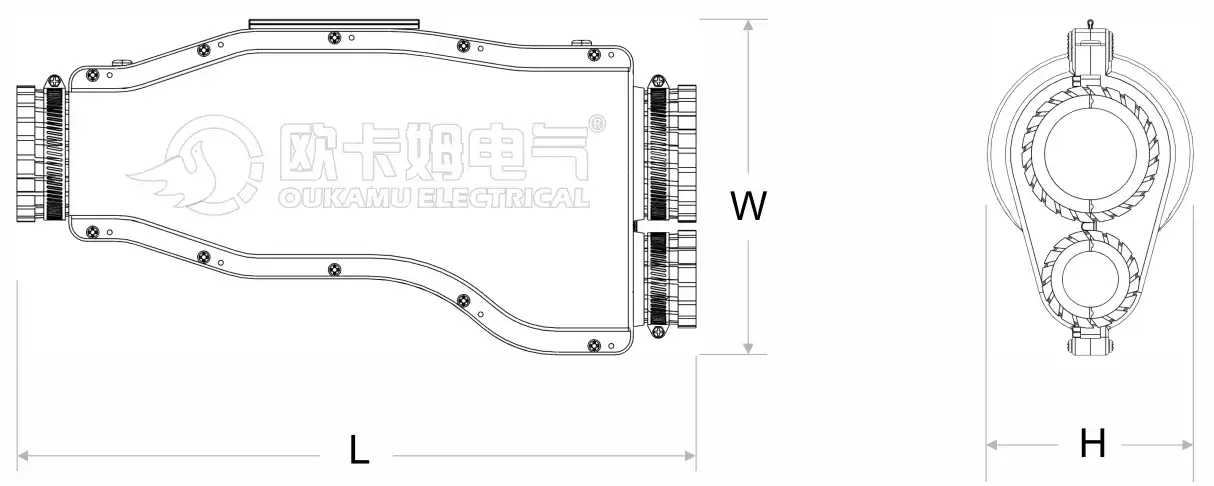

Size
L*W*H(mm)
|
||
|
Copper Core
|
Aluminum Alloy Core
|
|||||
|
ZR-JFZ-16/10
|
4~16
|
1.5~10
|
0.6/1
|
72
|
/
|
260*105*65
|
|
ZR-JFZ-35/16
|
10~35
|
2.5~16
|
0.6/1
|
95
|
76
|
325*140*75
|
|
ZR-JFZ-70/35
|
25~70
|
2.5~35
|
0.6/1
|
150
|
120
|
365*170*105
|
|
ZR-JFZ-95/35
|
35~95
|
2.5~35
|
0.6/1
|
150
|
120
|
375*175*110
|
|
ZR-JFZ-120/35
|
50~120
|
2.5~35
|
0.6/1
|
150
|
120
|
380*180*115
|
|
ZR-JFZ-150/50
|
50~150
|
6~50
|
0.6/1
|
190
|
152
|
425*185*115
|
|
ZR-JFZ-185/35
|
70~185
|
2.5~35
|
0.6/1
|
150
|
120
|
430*190*120
|
|
ZR-JFZ-95/70
|
35~95
|
16~70
|
0.6/1
|
240
|
190
|
440*190*120
|
|
ZR-JFZ-240/70
|
95~240
|
6~70
|
0.6/1
|
240
|
190
|
460*210*130
|
|
ZR-JFZ-185/95
|
70~185
|
10~95
|
0.6/1
|
290
|
230
|
515*230*140
|
|
ZR-JFZ-300/95
|
120~300
|
10~95
|
0.6/1
|
290
|
230
|
515*230*140
|
|
ZR-JFZ-240/120
|
95~240
|
50~120
|
0.6/1
|
340
|
280
|
520*240*145
|

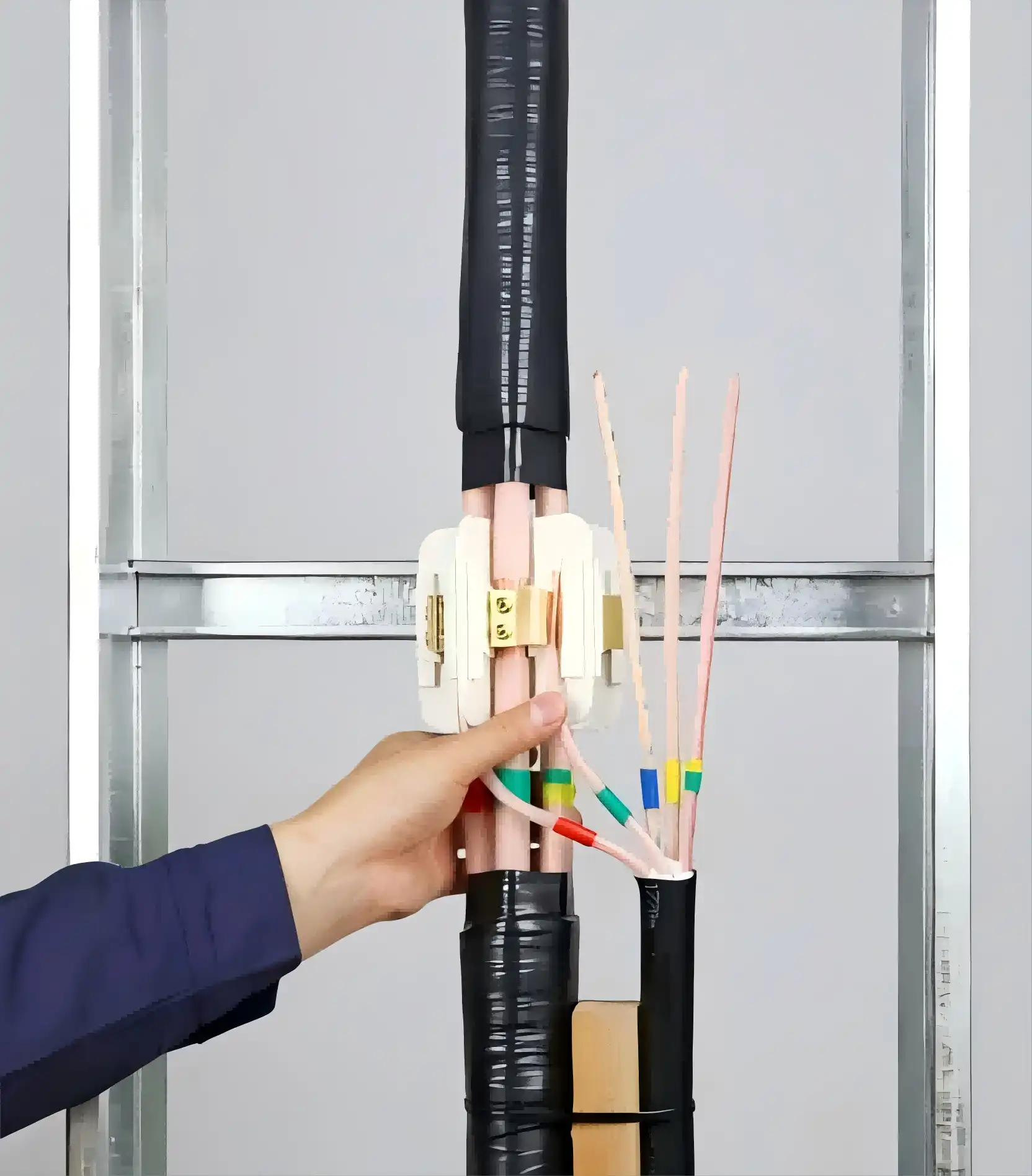

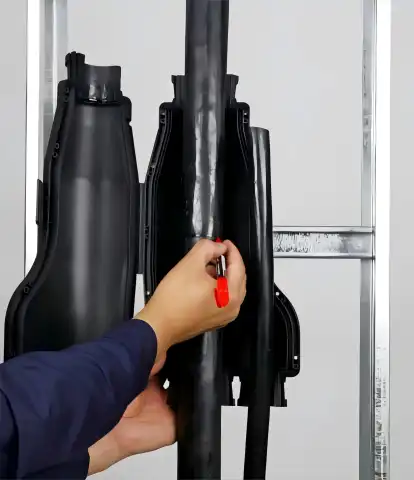

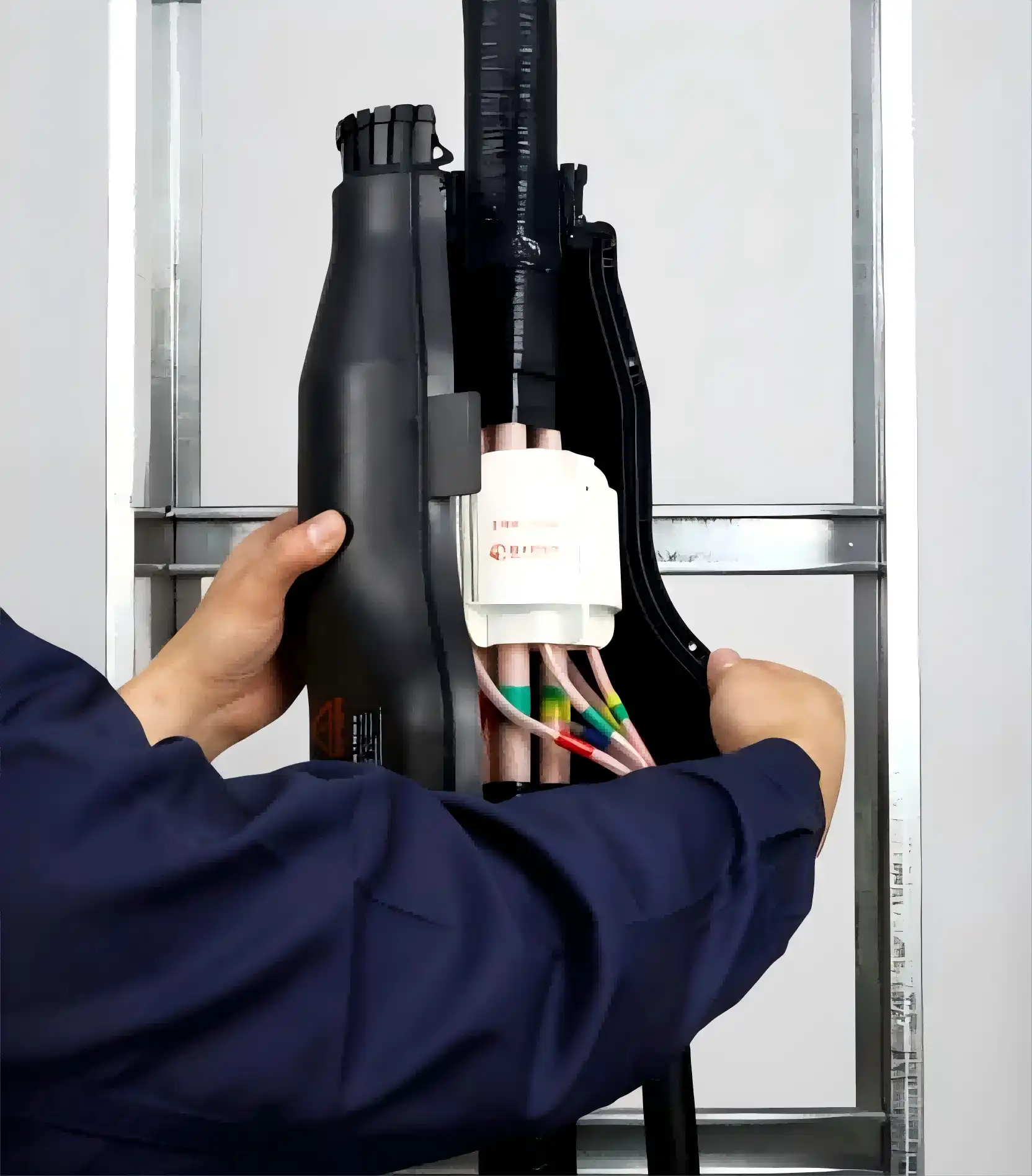

Installation Steps
2.Determine installation location

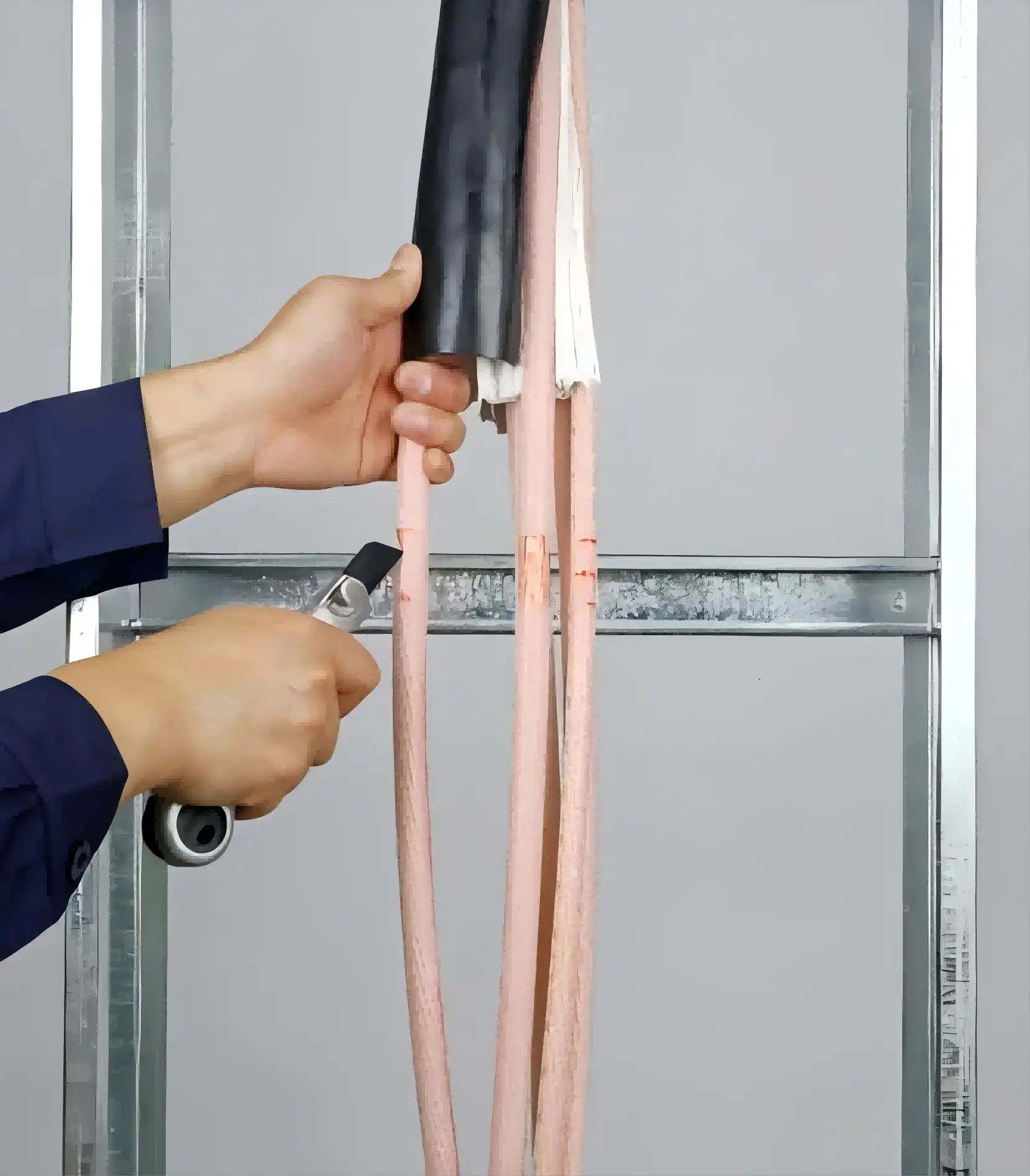

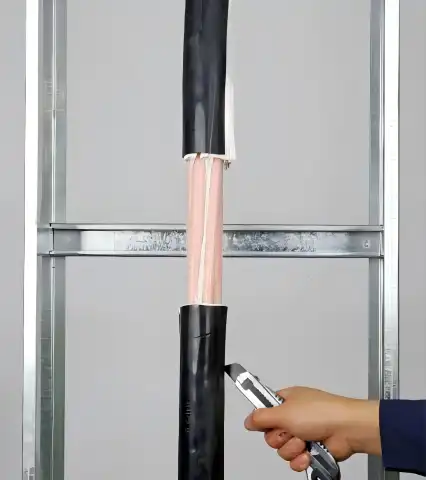

4.Strip main cable insulation

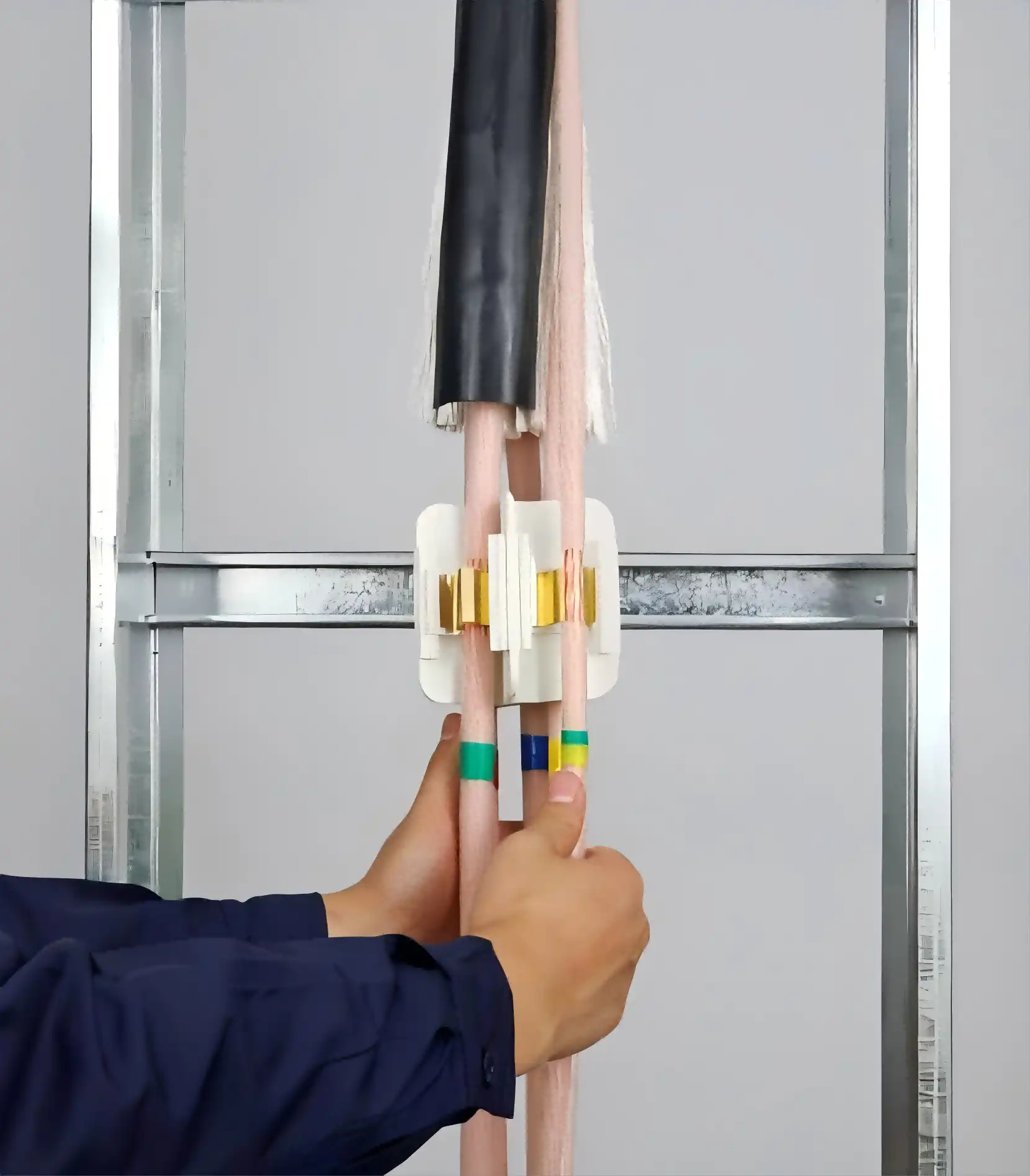

5.Installation of branch cable body

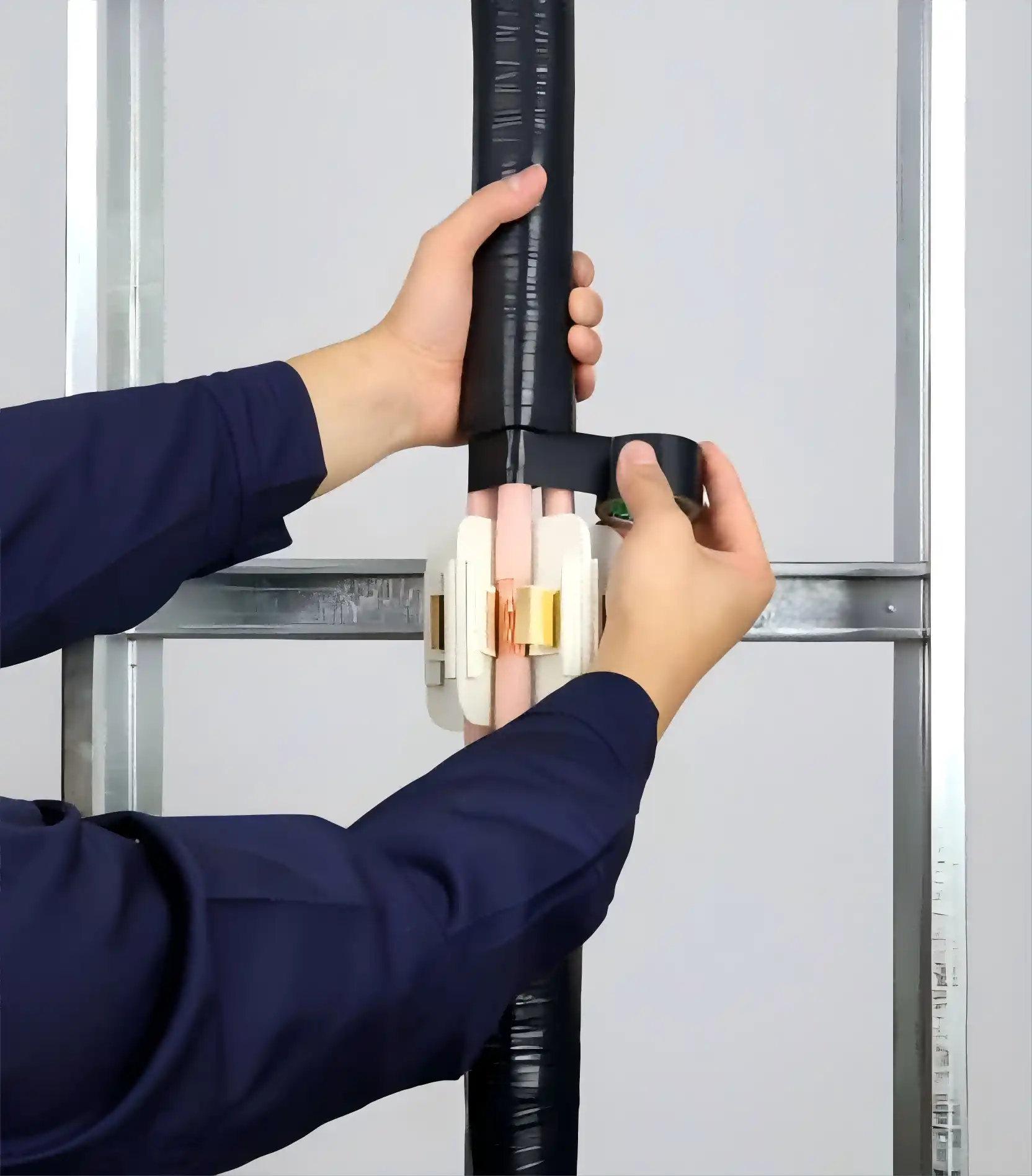

6.Overwrap open seams
7.Installation of branch cables

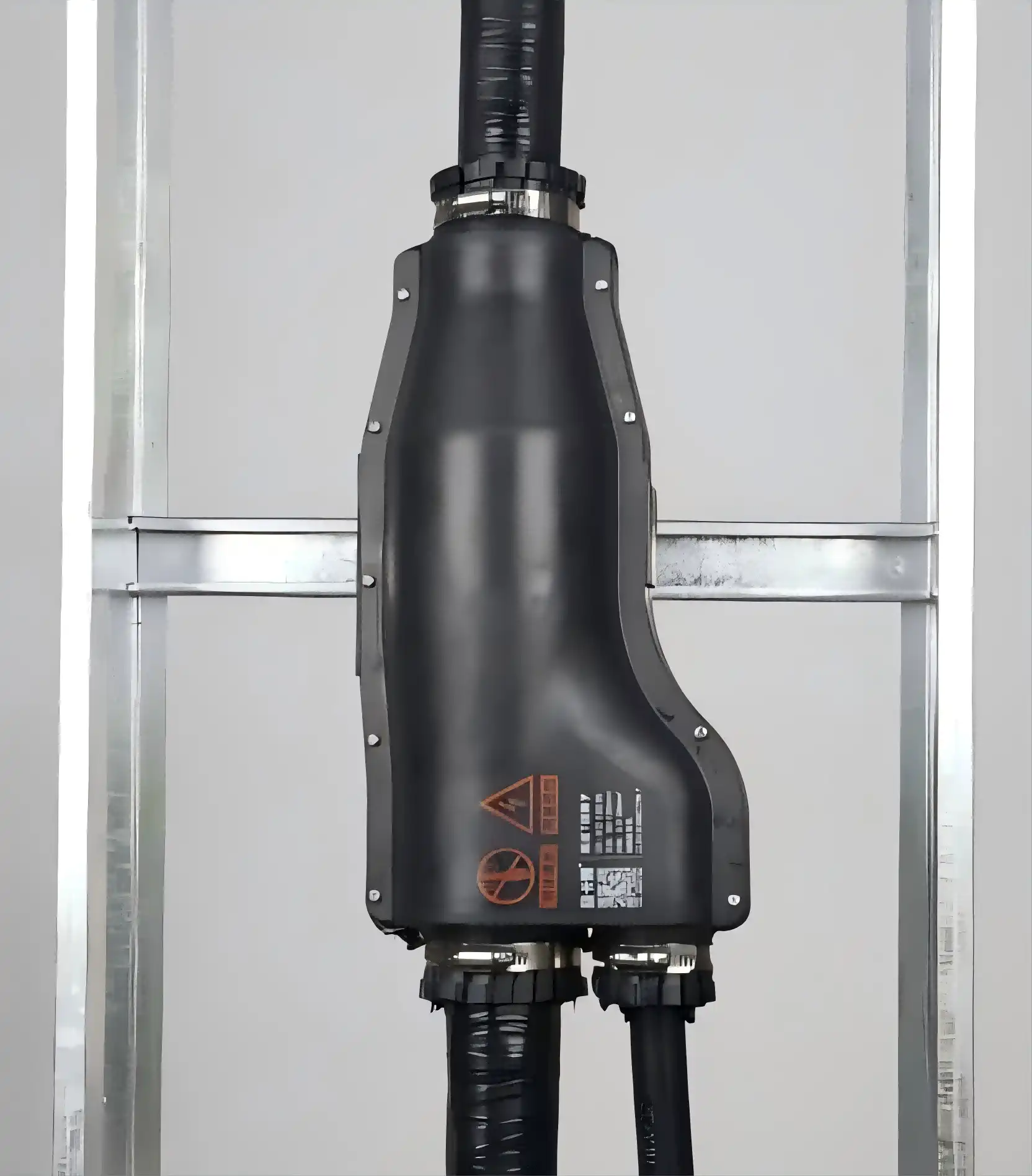

8.Snap-on protective housing

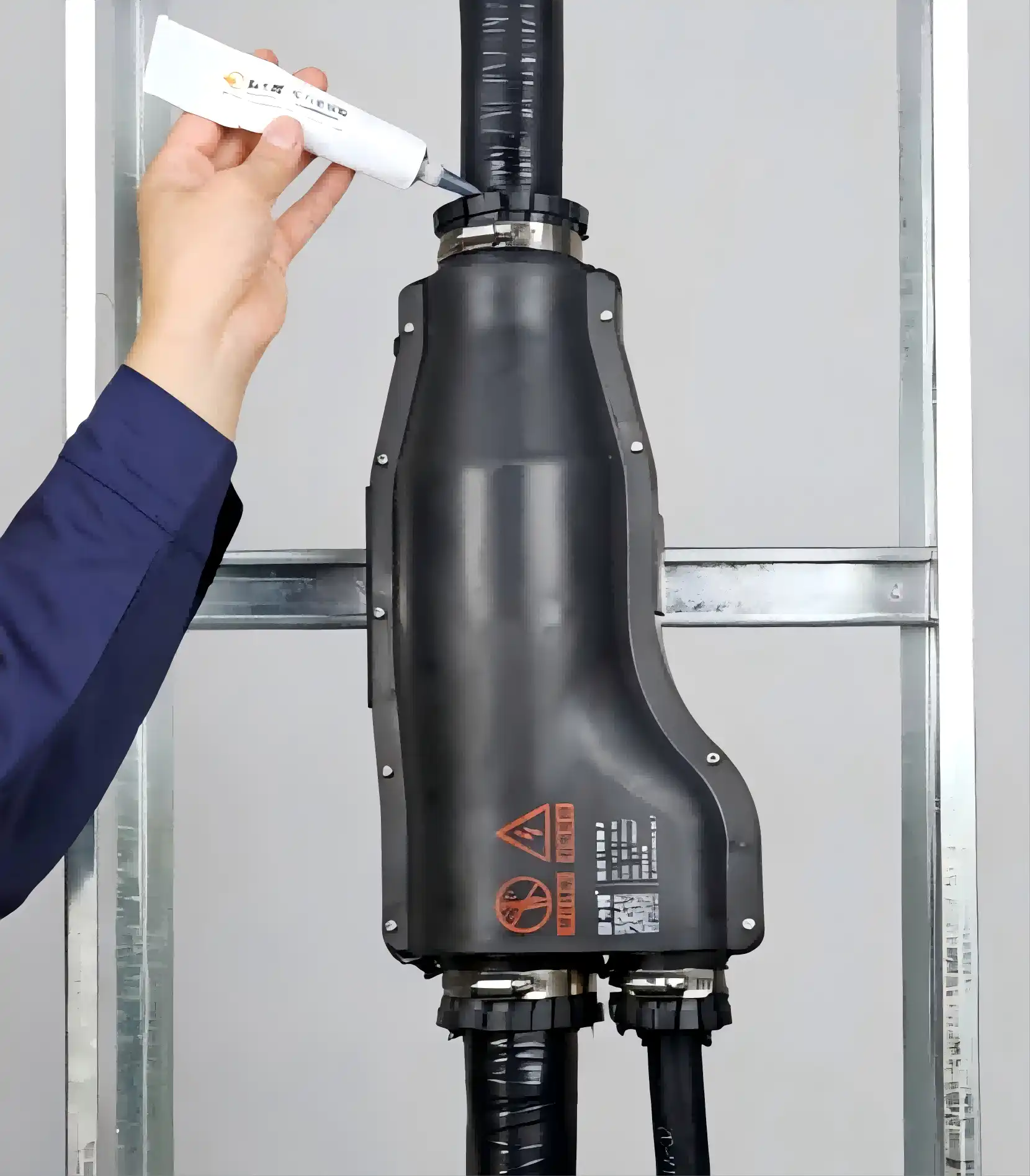

9.Lock and glue the cable outlet
10.Installation completed
Application Scenarios
Our Cast Resin Joints For Armoured Cables serve diverse industrial and civil construction projects requiring reliable low-voltage distribution.
Commercial Buildings: Shopping centers, office complexes, and hotels benefit from space-saving installation and aesthetic appearance. The integrated design eliminates bulky junction boxes while providing safe branch connections.
Residential Infrastructure: Apartment buildings and housing developments utilize these joints for efficient power distribution. The maintenance-free operation reduces long-term property management costs.
Underground Applications: Metro systems, underground parking facilities, and tunnel lighting systems require waterproof solutions. Our IP68-rated joints perform reliably in these challenging environments where moisture and flooding risks exist.
Industrial Facilities: Factories, warehouses, and production plants need flexible power distribution that adapts to changing equipment layouts. The adjustable installation positions accommodate facility modifications without extensive rewiring.
Public Infrastructure: Airports, train stations, sports stadiums, and government buildings demand high safety standards. Fire-resistant variants provide enhanced protection for critical installations.
Installation Advantages
OUKAMU resin joints provide a far simpler installation approach than traditional ways. No special cutting tools or complicated cable preparation processes.
Place the joint housing at the chosen branch point and attach the branch cable at the included connections. Pour the two-component resin mixture. The curing reaction is exothermic and occurs in a matter of minutes, leaving a solid insulated connection.
The clear or impact-resistant casing enables visual examination during installation. Proper connector placement and resin coverage can be verified before final curing, reducing installation errors.
Basic installations don't need any extra trainings or certifications. It can be installed by your regular electrical guys so you don't have to hire specialist professionals and the process will cost less.
Quality Assurance and Performance
OUKAMU has 150+ invention patents, serving as a proof of our passion for innovation and excellence. We have a 20 year patent on our patented cable branch connection technique which is a true breakthrough innovation in the industry.
Each joint is subject to stringent tests for electrical performance, mechanical strength, watertight integrity and thermal stability. We have rigorous quality controls throughout the manufacturing process to ensure consistent performance.
The company's reliability in real-world settings is confirmed by its successful track record in large infrastructure projects. Our joints are working reliably in the most demanding applications across China, from high speed railroads to metro systems.
Why Choose OUKAMU Cast Resin Joints For Armoured Cables?
With two decades specializing in cable connection technology, OUKAMU understands your challenges in modern electrical installations. Our solutions address the core needs of efficiency, safety, and cost-effectiveness.
The uncut main cable design preserves electrical continuity while reducing potential failure points. You maintain optimal system performance without compromising on flexibility or installation speed.
Our commitment to customer-centric service means you receive expert technical support throughout your project. From specification selection to installation guidance, we partner with you for successful outcomes.
FAQ
Q: Can I use these joints with different cable types?
A: Yes, OUKAMU resin joints are compatible with PVC, XLPE, polyethylene, and paper-insulated armoured cables. The resin provides excellent adhesion to all common polymeric cable materials.
Q: What's the maximum branch cable size supported?
A: Our standard range accommodates branch cables from 6mm² to 70mm². Custom solutions are available for larger specifications upon request.
Q: How long does installation take?
A: A typical installation completes in 20-30 minutes, including preparation and resin curing time. This represents significant time savings compared to traditional cut-and-splice methods.
Q: Is the resin truly waterproof for underground burial?
A: Yes, the cured resin creates a watertight seal with IP68 protection rating. Proper installation ensures reliable performance even under continuous water submersion.
Q: Do I need to cut the main cable?
A: No, our design specifically allows branch connections without cutting the main conductor. This preserves the cable's current-carrying capacity and mechanical integrity.
Q: What's the operating temperature range?
A: OUKAMU resin joints operate reliably from -40°C to +90°C, covering extreme conditions in most geographical regions and installation environments.
Q: Are fire-resistant versions available?
A: Yes, we offer specialized fire-resistant models that maintain electrical integrity during fire exposure, ideal for high-safety applications like public buildings and transportation facilities.
Contact Us for Expert Solutions
Ready to streamline your Cast Resin Joints For Armoured Cables installation projects? Contact our technical team at info@okmbranchcable.com for specifications, quotations, and expert guidance on selecting the right solution.
