Specialised in branch cable connector for 20 years
IP68 Waterproof
Suitable for main cable 4~16mm, branch cable 1.5~10mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Underground Cable Jointer Introduction
Are you looking for a reliable and efficient way to branch low-voltage cables in your underground infrastructure? Look no further than the Underground Cable Jointer, a revolutionary product developed by Xi'an Oukamu Electric Co., Ltd. This integrated T-connector (also known as an integrated brancher) offers a safe, convenient, and aesthetically pleasing alternative to traditional cable branching methods.

Universal Integrated T-Core for Low Voltage Cable Branching
Our integrated T-branch connector core serves as the shared internal connection unit across our entire cable joint portfolio. Designed for non-cut main cable tapping, the assembly adopts high-purity brass conductive inserts for low contact resistance and long-term electrical performance. The engineered insulation carrier firmly positions conductors and prevents phase-to-phase short circuits. One core design fits multiple housing options: it can be assembled into standard flame retardant enclosures, fire survival housings or IP68 waterproof joint kits, greatly simplifying your project specification and stock management.
Underground Waterproof Cable Joint Kit (Full Assembly)
Our all-in-one underground cable joint kit combines the T-connector core with a complete waterproof sealing system. Package contents: two-component resin adhesive, impact-resistant outer housing, branch terminal blocks, sealing strips and installation accessories. Designed for direct burial, basement, car park and flood-prone environments. Delivers IP68 hermetic sealing after proper installation, protects connections from groundwater, moisture and soil corrosion, cuts on-site splicing time and passes site inspection smoothly.

● Dielectric Withstand Voltage Performance
•For IP65‑rated integrated T‑connector terminals: After damp heat conditioning at 91 % to 95 % relative humidity, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.
•For IP68‑rated integrated T‑connector terminals: After immersion in water at a depth of 1 m for 1 hour, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.
•Standards Compliance: The products meet all applicable requirements of Q/OKM01‑2018 "Integrated T‑connector terminals (integrated branch devices) with rated voltage 0.6/1 kV".
•Certified Testing: The products have been successfully tested and certified by the National Quality Supervision and Testing Center for Wire and Cable and by Oukamu Electric Co., Ltd., with all tests passed.

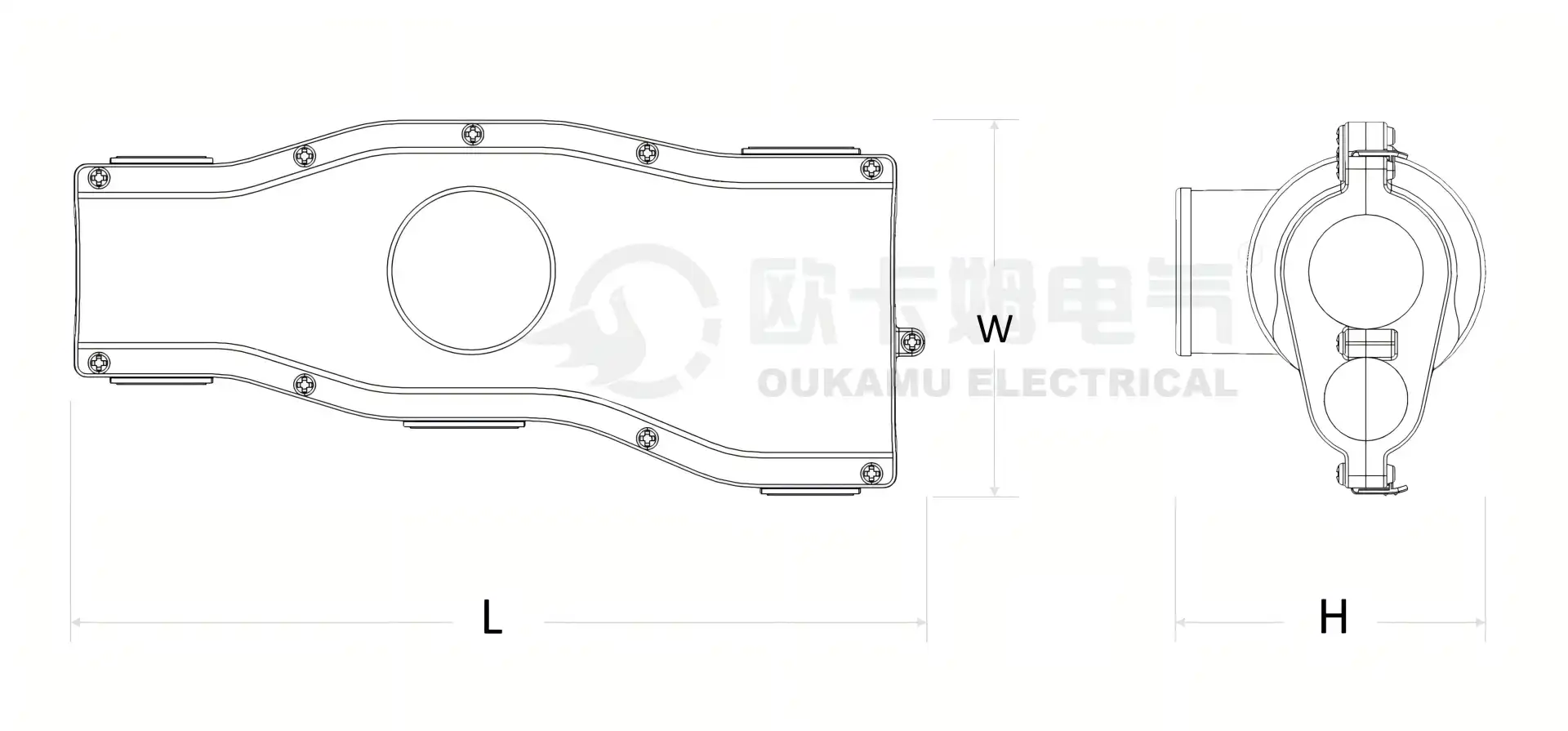

Dimension

Parameters
|
MODEL
|
Specification (cross-sectional area of cable core conductors (mm²) |
Technical Parameters |
|||
|
Main Cable (2~5 Cores) |
Branch Cable (2~5 Cores) |
Rated Voltage (kV) |
Subloaded Current (A) |
Size L*W*H(mm) |
|
|
T-GJFZ-16/10 |
4~16 |
1.5~10 |
0.6/1 |
71 |
205*100*85 |
|
T-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
95 |
270*115*100 |
|
T-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
95 |
310*125*115 |
|
L-GJFZ-35/16 |
10~35 |
2.5~16 |
0.6/1 |
70 |
270*115*100 |
|
L-GJFZ-70/16 |
25~70 |
2.5~16 |
0.6/1 |
70 |
310*125*115 |
Technical Parameters
An Underground Cable Jointer is a specialized technician responsible for connecting and terminating underground electrical cables. This role is crucial in ensuring the reliability and safety of electrical systems that are installed below ground, such as those used in power distribution, telecommunications, and other utilities.
Application: Branch connection of low-voltage flame-retardant, fire-resistant, and mineral-insulated fire-resistant cables.
Material: High-quality flame-retardant and fire-resistant materials.
Installation: Can be installed both openly and in the bridge.
Design: Integrated structure with a compact size.
Key Responsibilities
Cable Jointing: They perform splicing and termination of cables, including armoured and non-armoured types, to create secure electrical connections.
Installation: Involved in setting up jointing boxes and other protective enclosures for cable joints to ensure they are safeguarded against environmental factors.
Testing: Conduct tests on completed joints to verify their integrity and performance, ensuring they meet safety and operational standards.
Troubleshooting: Identify and rectify any issues related to cable faults or failures in underground installations.
Adhering to Standards: Ensure all work complies with industry regulations and safety protocols.
Skills and Qualifications
Technical Knowledge: Understanding of electrical theory and cable specifications.
Hands-On Experience: Proficiency in using tools and equipment for jointing and testing cables.
Safety Awareness: Knowledge of safety practices related to working with electrical systems.
Importance
Reliability: Ensures robust connections that minimize the risk of outages and faults in underground electrical networks.
Durability: Proper jointing helps cables withstand harsh underground conditions, including moisture and soil pressure.
Efficiency: Contributes to the overall efficiency of electrical systems by reducing energy loss through well-executed joints.
Technical Features
The Underground Cable Jointer stands out with its innovative design and features:
No Cable Cutting: The main cable remains intact, eliminating the need for cutting and potentially compromising its integrity.
Integrated Connection: The main and branch cables are seamlessly connected on the integrated T-connector body, ensuring a secure and reliable connection.
Insulated and Sealed Branch Cable: The branch cable is fully insulated and sealed, providing complete protection against environmental factors and ensuring safety.
Composition and Classification
It is available in various configurations to accommodate different cable types and sizes. The specific composition and classification will depend on the specific requirements of your project. Contact us at [info@okmbranchcable.com] for detailed information and assistance in choosing the right model for your needs.
Underground Cable Jointer Application Fields
Power distribution: Branching low-voltage cables for residential and commercial applications.
Industrial infrastructure: Connecting cables in factories, warehouses, and other industrial settings.
Telecommunications: Branching fiber optic cables for network connectivity.
Transportation: Connecting cables in railway systems, airports, and other transportation infrastructure.
Construction: Branching cables for construction projects of all sizes.
Our Certificates
Our Team

Packaging and Transportation
It is packaged securely to protect it during transportation. We offer various packaging options to ensure safe delivery to your project site. Contact us for more information on packaging and transportation options.

Contact Us
For any questions for Underground Cable Jointer or to place an order, please contact us at info@okmbranchcable.com. Our team of experts is ready to assist you with your specific requirements and provide you with tailored solutions.
