Low Voltage Waterproof Straight-Through Joint

Model: L-GJFZ-35/16
Specialised in branch cable joints for 20 years
IP68 Waterproof
Suitable for main cable 10~35mm, branch cable 2.5~16mm
Gel-filled insulation and waterproof, double safety protection
Concealed installation in wells or direct buried soil
No need to cut the main cable, no need to reserve lengths
Flexible installation location
Low overall cost, high cost performance
Product Description

Low Voltage Waterproof Straight-Through Joint Introduction

Our Low Voltage Waterproof Straight-Through Joint at Xi'an OUKAMU exemplifies our commitment to quality and innovation in cable connection solutions. The most recent technology is incorporated into this product for superior performance, ensuring secure and dependable connections for low-voltage cables in a variety of settings.

Low Voltage Waterproof Straight-Through Joint is ideal for use both indoors and outdoors due to its waterproof design, which is designed to withstand harsh environmental conditions.

The advanced sealing technology in the joint prevents water from entering the joint, which is essential for maintaining connection integrity in damp or wet environments. The cable connections' lifespan is improved as a result of this protection, as is the likelihood of failures brought on by moisture exposure.

modular-1

Composition of underground cable branch joints



Includes a branch terminal body, insulating housing, sealing tape, and resin adhesive.

Sealing Tape



Function

Wrapped around the outer sheaths of the main cable and branch cables, it seals the clearances between the cables and the respective feedthrough opening (for the main cable) and branch outlet in the protective enclosure, thereby preventing the ingress of dust and solid particulates into the housing.

Performance & Characteristics

Single-sided adhesive coating (pressure‑sensitive) Elastic material providing flexibility to accommodate minor deformations

Easy and convenient on‑site application Excellent sealing performance, ensuring reliable protection

Flame‑retardant, complying with relevant safety standards for cable accessories

modular-2

● Dielectric Withstand Voltage Performance

•For IP65‑rated integrated T‑connector terminals: After damp heat conditioning at 91 % to 95 % relative humidity, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.

•For IP68‑rated integrated T‑connector terminals: After immersion in water at a depth of 1 m for 1 hour, an applied voltage of 3.5 kV for 5 minutes shall not cause phase‑to‑phase breakdown.

•Standards Compliance: The products meet all applicable requirements of Q/OKM01‑2018 "Integrated T‑connector terminals (integrated branch devices) with rated voltage 0.6/1 kV".

•Certified Testing: The products have been successfully tested and certified by the National Quality Supervision and Testing Center for Wire and Cable and by Oukamu Electric Co., Ltd., with all tests passed.



product-783-783

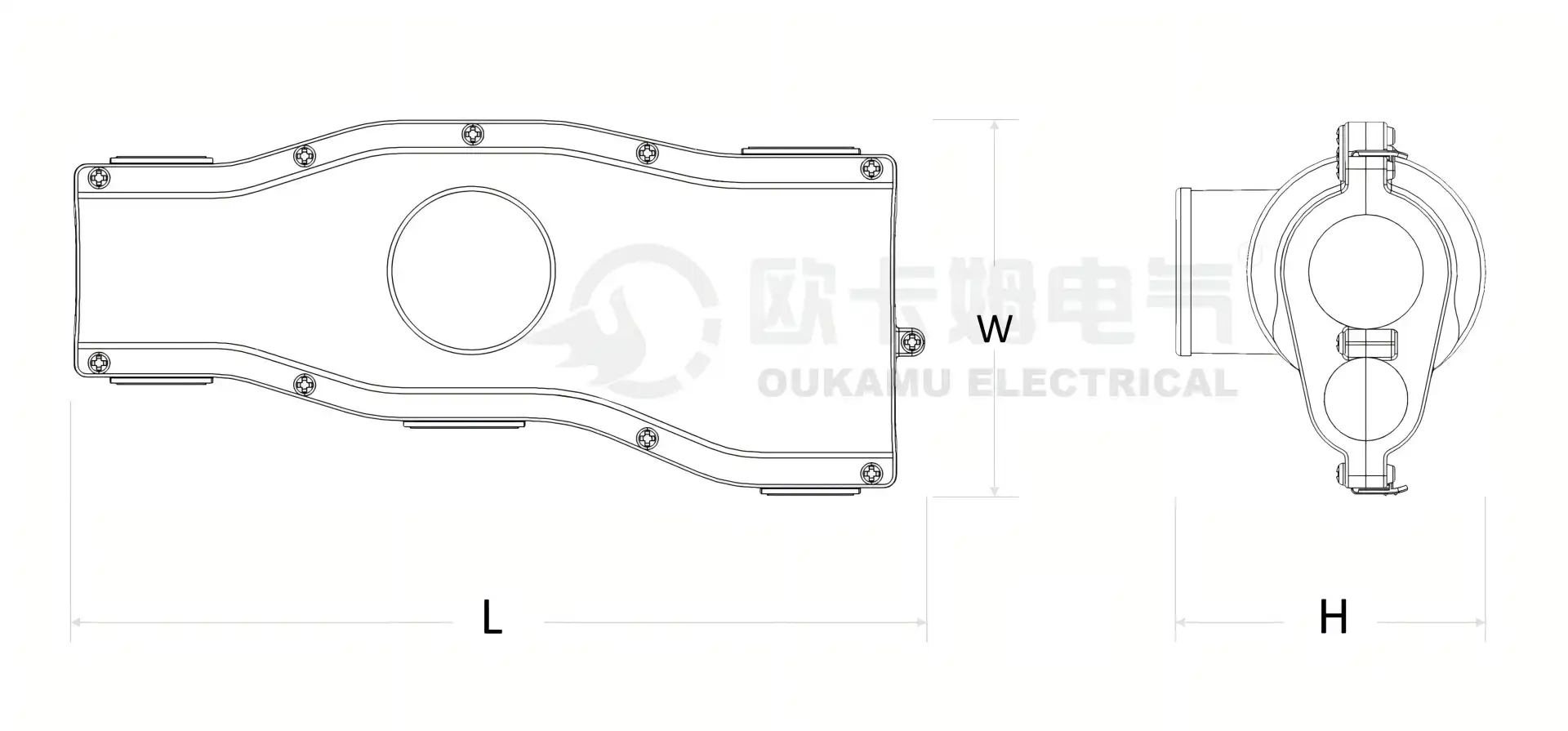

Dimension

underground cable branch joint connectors

Parameters



MODEL

Specification (cross-sectional area of cable core conductors (mm²)

Technical Parameters

Main Cable

(2~5 Cores)

Branch Cable

(2~5 Cores)

Rated Voltage

(kV)

Subloaded Current

(A)

Size

L*W*H(mm)

T-GJFZ-16/10

4~16

1.5~10

0.6/1

71

205*100*85

T-GJFZ-35/16

10~35

2.5~16

0.6/1

95

270*115*100

T-GJFZ-70/16

25~70

2.5~16

0.6/1

95

310*125*115

L-GJFZ-35/16

10~35

2.5~16

0.6/1

70

270*115*100

L-GJFZ-70/16

25~70

2.5~16

0.6/1

70

310*125*115

Advantages

There are a number of reasons why the Low Voltage Waterproof Straight-Through Joint stands out:

Installation Ease: Installation on the spot is simple and allows for quick branch connections at any location without cutting the main cable.

Durability: Our joint has a compact structure that is not only aesthetically pleasing but also durable and built to last.

Versatility: It is adaptable to a variety of settings because it can be installed openly or within a bridge.

Cost-Effective: The total cost is significantly reduced by cutting back on cables, building space, and labor.

Safety: The product is waterproof, dustproof, and designed to withstand electrochemical corrosion, ensuring its reliability over time.

Technical Features

Our Low Voltage Waterproof Straight-Through Joint is engineered with precision:

Non-Invasive Installation: The main cable remains intact during installation, preserving its integrity.

Secure Connections: Both the main and branch cables are securely installed and pressed within the integrated T-connector body.

Comprehensive Insulation: The entire branch cable is insulated and sealed, providing superior protection against environmental factors.
