Insulating Cable Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~2 times that of the same size wire.
Insulating Cable Connector - Professional Low Voltage Branch Joint Solution
Xi'an OUKAMU Power Technology Co., Ltd. specializes in advanced Insulating Cable Connector systems engineered for modern electrical infrastructure. Our OCMXH-300/95 model features UL94V0 flame retardant performance, insulation resistance exceeding 1000 megohm, and withstand voltage capacity above 4kV. With 20 years of expertise and over 150 national invention patents, OUKAMU delivers cable branch connection technology that requires no main cable cutting while providing 1.5-2 times the carrying capacity of standard wire connections. Successfully deployed across 10,000+ projects including the Hong Kong-Zhuhai-Macao Bridge and multiple metro systems, our connectors ensure reliable, maintenance-free performance in industrial, commercial, and infrastructure applications.
Why Choose OUKAMU Insulating Cable Connectors?
Electrical distribution projects require connectivity solutions that balance performance, safety and ease of installation. The conventional methods of cable jointing need the primary conductors to be severed, which reduces their load capacity and increases the risk of failure.
The integrated branch connector technology of OUKAMU presents a new design solution to the above difficulties. Our method keeps the integrity of the main wire and enables safe branch connections wherever. Such a technique preserves the original cable carrying capacity and mechanical strength in the whole distribution network.
The patented piercing connection design removes the need to strip insulation. Installation teams can make connections quickly and easily, without the need for preparing specific cables, greatly decreasing labour costs and project schedules.
All of our connectors are fully encapsulated in high quality resin materials for IP68 level protection against moisture, dust and environmental contamination. Complete sealing makes them excellent for cable wells, direct burial and rugged underground locations.

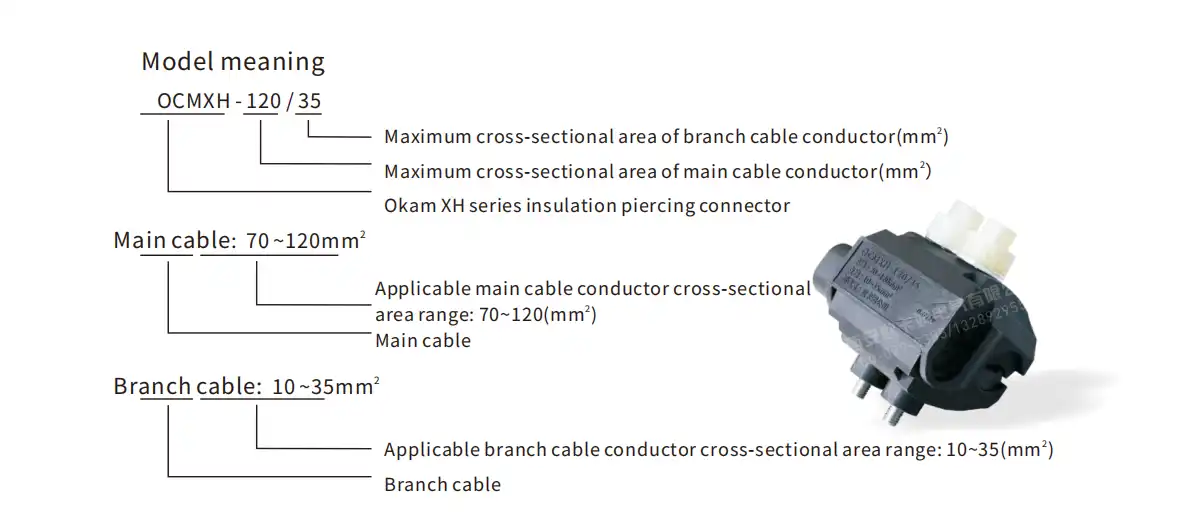

Parameters
|
Model
|
Specifications(Conductor cross section mm²)
|
Piercing blade
|
Rated voltage(kV)
|
Split-load current(A)
|
Torque bolts
|
Size
L*W*H(mm)
|
||||
|
Main cable
|
Branch cable
|
Quantity
(pcs)
|
Teeth NO.(pcs)
|
Thickness
(mm)
|
Quantity
(pcs)
|
Breaking torque N.m
|
||||
|
OCMXH-16/6
|
1~16
|
1~6
|
8
|
24
|
1.5
|
0.6/1
|
51
|
1
|
11
|
33*30*45
|
|
OCMXH-35/10
|
6~35
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
13
|
46*42*66
|
|
OCMXH-95/10
|
16~95
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
15
|
46*42*71
|
|
OCMXH-35/35
|
10~35
|
10~35
|
16
|
48
|
2.0
|
0.6/1
|
150
|
1
|
15
|
46*41*75
|
|
OCMXH-95/35
|
50~95
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
17
|
57*63*78
|
|
OCMXH-120/35
|
70~120
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
19
|
57*63*83
|
|
OCMXH-150/50
|
70~150
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
21
|
61*70*85
|
|
OCMXH-240/50
|
95~240
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
63*70*90
|
|
OCMXH-300/50
|
120~300
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
65*70*95
|
|
OCMXH-95/95
|
50~95
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
19
|
55*57*78
|
|
OCMXH-150/95
|
70~150
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
24
|
60*65*85
|
|
OCMXH-240/95
|
120~240
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
25
|
67*77*98
|
|
OCMXH-240/240
|
120~240
|
120~240
|
24
|
72
|
2.5
|
0.6/1
|
540
|
2
|
29
|
76*79*100
|
Key Features and Benefits
Uncut Main Cable Design
Reliability of your distribution system hinges on preserving conductor continuity. Our Insulating Cable Connector maintains the integrity of the main cable without cutting or interrupting the flow of power. This design avoids the loss of current-carrying capability associated with typical ways of splices.
The uncut method also removes possible weak places where cable breakdowns are likely to happen. Minimise conductor cuts to minimise long-term maintenance and maximise overall system life.
Flexible Installation On Site
Conditions in the field are seldom as originally specified. OUKAMU connections let you to place branches anywhere without pre-measuring or custom manufacturing. Installers can alter the branch points to match the real site conditions when installing.
This versatility is helpful in renovation and retrofit projects. Teams may utilise existing distribution lines with little planning or downtime, minimising interruption to occupied facilities.
Improved Waterproof Protection
Most failures of underground cable are caused by moisture intrusion. Our resin encapsulated design gives you full waterproof sealing with an IP68 rating. The integrated housing ensures that there is no intrusion of water even if submerged continuously.
This level of protection allows our connections to be used in direct burial applications, cable wells and in flood-prone installations. Your distribution system is working reliably regardless of how much moisture is in the surroundings.
Excellent Flame Retardant Performance
“Fire regulations are getting tighter in all corners of the construction industry. UL94V0 flame retardant standards. OUKAMU connections will not allow fire to travel throughout the cable path. Fire-resistant variants offer additional protection for key circuits that must stay in service throughout the fire.
This enhanced flame resistance makes our products excellent for tunnels, high rise structures, hospitals and public infrastructure where fire safety is important.
Compact Space-Saving Design
Many projects often have limited room for installation. The small shape of our connector saves space for branch connections. The sleek housing fits easily within cable trays, conduits and restricted locations where standard junction boxes cannot.
The space efficiency allows for cleaner installations and better aesthetics. The building managers like the tidy look and the reduced visual impact in visible installation areas.
Application Scenarios
Industrial Facilities: Manufacturing plants and factories benefit from flexible power distribution without production interruption. Our connectors enable branch additions as equipment layouts change.
Commercial Buildings: Office complexes and shopping centers require adaptable electrical systems. The uncut main cable design allows tenant build-outs without affecting other occupants.
Residential Developments: Apartment buildings and housing projects use our connectors for efficient floor-by-floor distribution with simplified vertical riser connections.
Transportation Infrastructure: Metro systems, railway stations, and tunnels rely on our fire-resistant and waterproof models for safe, long-term operation in challenging underground environments.
Municipal Lighting: Street lighting and landscape illumination projects benefit from cost-effective installation and maintenance-free performance across distributed networks.
Underground Utilities: Direct burial applications in cable wells and trenches utilize our IP68-rated connectors for reliable operation in wet conditions.
Installation Advantages
Installation speed directly impacts project costs. OUKAMU connectors require no special tools beyond standard electrical equipment. The simple connection process reduces installation time by 40-60% compared to traditional resin joint methods.
Training requirements are minimal. Technicians familiar with basic electrical work can install our connectors safely after brief instruction. This accessibility reduces dependency on specialized jointing teams.
The integrated design eliminates multiple components. You don't need separate junction boxes, terminal blocks, or extensive waterproofing materials. Everything necessary for a complete connection comes in one package.
Quality control improves with factory-integrated components. Unlike field-assembled joints where quality varies by installer skill, our connectors provide consistent performance across all installations.
Quality and Certification
OUKAMU maintains rigorous quality standards throughout manufacturing. Each connector undergoes comprehensive electrical testing including insulation resistance verification and dielectric strength confirmation before shipping.
Our products comply with international standards for low voltage electrical equipment. The manufacturing process incorporates ISO quality management systems ensuring consistent product performance.
With over 150 invention patents, our technology represents genuine innovation rather than copied designs. The 20-year patent protection on core technologies confirms the originality and advanced nature of our solutions.
Successful deployment in landmark projects validates real-world performance. The Hong Kong-Zhuhai-Macao Bridge, multiple high-speed railways, and metro systems trust OUKAMU technology for critical infrastructure applications.
FAQ
Q: What cable types are compatible with OUKAMU products?
A: Our connectors work with polymeric insulated cables including PVC, XLPE, and polyethylene. They accommodate both armoured (SWA) and unarmoured cables with copper or aluminum conductors. Single-core and multi-core configurations from 2 to 5 cores are supported across the 10mm to 300mm size range.
Q: Can I install branch connections without shutting down the main circuit?
A: Yes, OUKAMU connectors use an insulation piercing design that allows live-line installation when proper safety procedures are followed. The main cable remains intact and energized while branch connections are made, minimizing service interruption.
Q: What protection rating do these connectors provide?
A: Our waterproof models achieve IP68 rating, suitable for continuous submersion. Standard models offer high-level dust and moisture protection. The complete resin encapsulation prevents water penetration in underground and outdoor applications.
Q: How long does installation typically take?
A: A trained technician can complete a single branch connection in 15-30 minutes depending on cable size. This represents significant time savings compared to traditional cable jointing methods requiring 60-90 minutes per connection.
Q: Are special tools required for installation?
A: No specialized equipment is necessary. Standard electrical tools including cable strippers, crimping tools, and torque wrenches are sufficient. The simplified installation process reduces equipment investment and training requirements.
Q: What is the expected service life?
A: When properly installed, OUKAMU connectors provide 20+ years of maintenance-free operation. The high-quality materials and complete environmental sealing ensure long-term reliability matching or exceeding cable service life.
Q: Can these connectors be used in fire-rated systems?
A: Yes, our fire-resistant models meet requirements for circuits requiring continued operation during fire events. All models feature UL94V0 flame retardant rating preventing fire propagation along cable routes.
Q: Do you provide technical support for project specifications?
A: Our engineering team assists with product selection, installation guidance, and project-specific technical requirements. We help ensure proper connector specification for your application conditions.
Contact Us for Expert Cable Connection Solutions
Ready to enhance your electrical distribution system with proven Insulating Cable Connector technology? Reach out today: info@okmbranchcable.com
