Piercing Connector
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~4 times that of the same size wire.
Piercing Connector – Reliable Cable Branch Connection Solution
Xi'an OUKAMU Power Technology Co., Ltd specializes in manufacturing high-performance Piercing Connector systems for low-voltage power distribution networks. Our OCMXH-70/35 model features UL94V0 flame retardant rating, withstands voltage over 4kV, and maintains insulation resistance greater than 1000 megohm. With 20 years of expertise and over 150 national invention patents, OUKAMU delivers cutting-edge cable connection technology requiring no main cable cutting or insulation stripping. The carrying capacity reaches 1.5 to 4 times that of same-size wires, ensuring superior electrical performance across industrial buildings, underground tunnels, and urban lighting projects.
What Is a Piercing Connector?
A product allows T-branch connections in electrical cable systems without interruption of the main power line. This novel gadget pierces the cable insulation to achieve good electrical contact and preserve the integrity of the main conductor.
In conventional cable branchings, the main line is cut, thus decreasing the current capacity and introducing possible places of failure. With our piercing technique, integrated design and precision engineering the disadvantages are eliminated.
The connector housing is manufactured with high strength materials with good flame retardant qualities. Controlled insulation penetration provides stable electrical contact thru the internal parts for long term stability in challenging settings.
Key Technical Features
Advanced Flame Retardant Design
OUKAMU products are rated UL94V0, the highest flame retardant standard. This degree of protection inhibits fire propagation in cable systems and improves overall electrical safety.
The housing can resist up to high temperatures without deforming. Electrical parts are insulated from temperature stress, so connection integrity is maintained when it matters.
Superior Electrical Performance
Our connections have outstanding insulation resistance of 1000 megohm. Such a high resistance prevents any leakage current and energy conservation in the whole distribution system.
Electrical strength test for verification of voltage tolerate capability exceeding 4kV. Your installation is protected from voltage surges and transient overvoltage circumstances.
The contact design gives maximum current-carrying capacity. Branch connections support 1.5 to 4 times the current of equivalent wire diameters, which reduces voltage loss and improves power quality.
Installation Without Main Cable Interruption
The groundbreaking design keeps the main cable in one piece. You can add branch circuits anywhere without cutting the primary conductor or peeling layers of insulation.
This enables to keep original cable mechanical strength and current ratin. You keep the entire capability of your distribution system and get more points of connection.
Installation flexibility allows positional change of the branch during construction. "You save time on pre-measurement and avoid costly custom cable builds.
Parameters
|

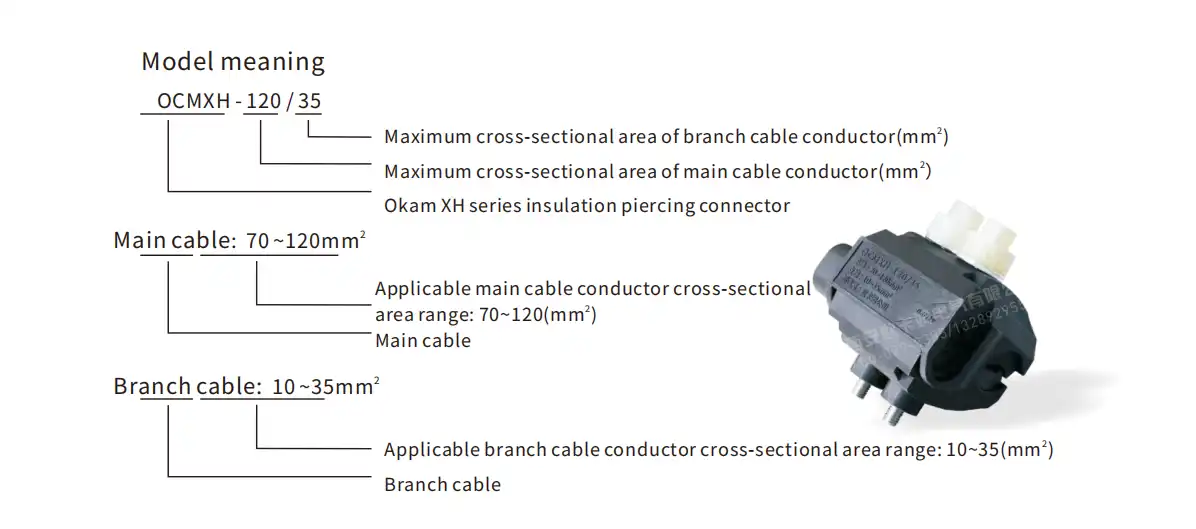

Model
|
Specifications(Conductor cross section mm²)
|
Piercing blade
|
Rated voltage(kV)
|
Split-load current(A)
|
Torque bolts
|
Size
L*W*H(mm)
|
||||
|
Main cable
|
Branch cable
|
Quantity
(pcs)
|
Teeth NO.(pcs)
|
Thickness
(mm)
|
Quantity
(pcs)
|
Breaking torque N.m
|
||||
|
OCMXH-16/6
|
1~16
|
1~6
|
8
|
24
|
1.5
|
0.6/1
|
51
|
1
|
11
|
33*30*45
|
|
OCMXH-35/10
|
6~35
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
13
|
46*42*66
|
|
OCMXH-95/10
|
16~95
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
15
|
46*42*71
|
|
OCMXH-35/35
|
10~35
|
10~35
|
16
|
48
|
2.0
|
0.6/1
|
150
|
1
|
15
|
46*41*75
|
|
OCMXH-95/35
|
50~95
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
17
|
57*63*78
|
|
OCMXH-120/35
|
70~120
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
19
|
57*63*83
|
|
OCMXH-150/50
|
70~150
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
21
|
61*70*85
|
|
OCMXH-240/50
|
95~240
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
63*70*90
|
|
OCMXH-300/50
|
120~300
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
65*70*95
|
|
OCMXH-95/95
|
50~95
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
19
|
55*57*78
|
|
OCMXH-150/95
|
70~150
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
24
|
60*65*85
|
|
OCMXH-240/95
|
120~240
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
25
|
67*77*98
|
|
OCMXH-240/240
|
120~240
|
120~240
|
24
|
72
|
2.5
|
0.6/1
|
540
|
2
|
29
|
76*79*100
|
Application Scenarios

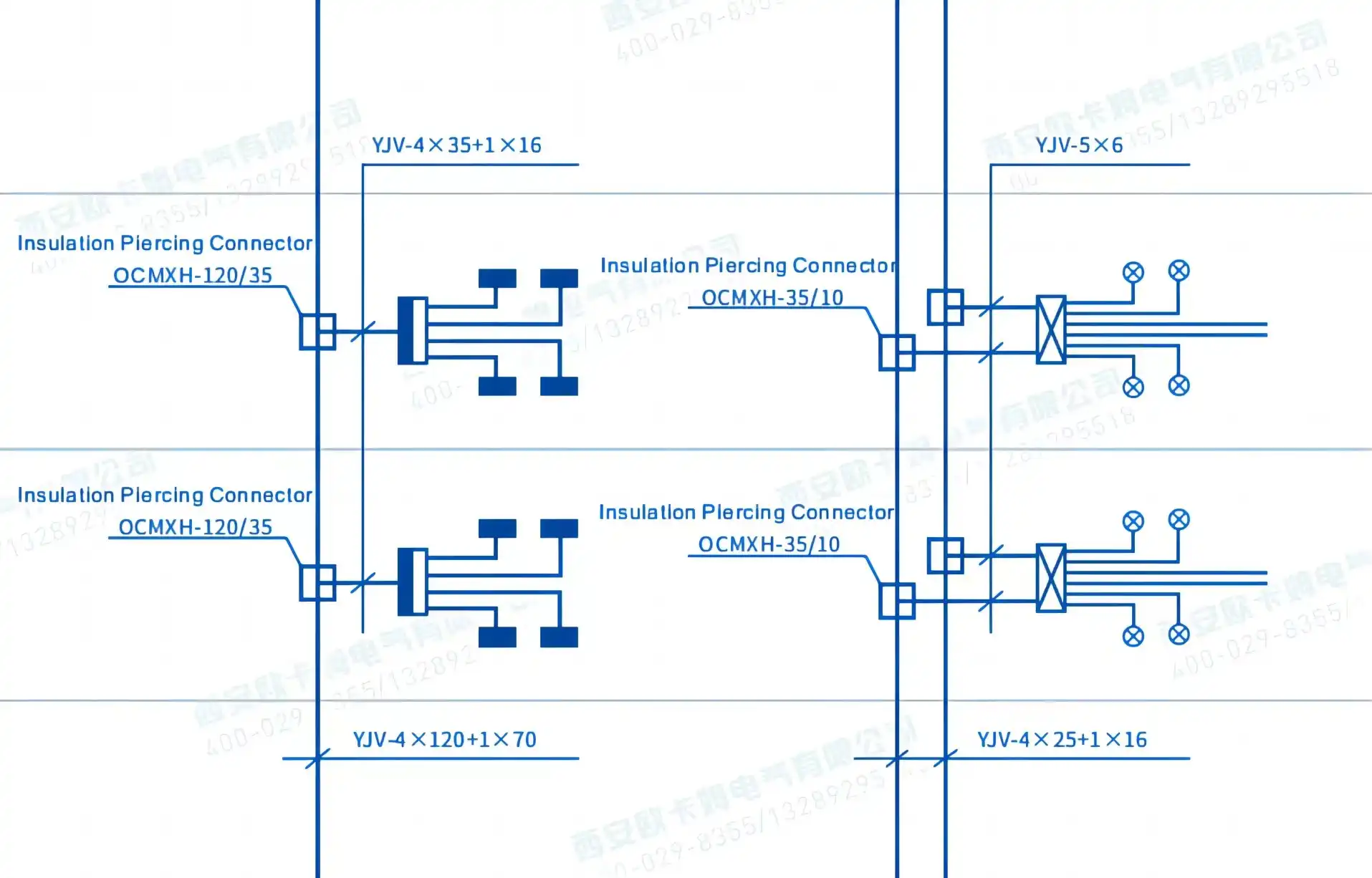

Industrial and Civil Buildings
OUKAMU piercing connectors serve power distribution systems in manufacturing facilities, commercial complexes, and residential buildings. The compact design saves installation space in electrical rooms and distribution panels.
Branch connections support lighting circuits, equipment power feeds, and emergency systems. You gain distribution flexibility without compromising safety or electrical performance.
Underground Infrastructure
Cable joints with resin encapsulation provide IP68-rated waterproof protection for subway systems, underground corridors, and cable trenches. The sealed housing prevents moisture ingress in challenging below-grade environments.
Our solutions have proven reliable in major infrastructure projects including metro lines and high-speed railways. The maintenance-free design reduces lifecycle costs in difficult-to-access locations.
Tunnel and Bridge Installations
Lighting systems in transportation tunnels benefit from simplified branch connections. Install circuits along cable runs without main line interruption, minimizing traffic disruption during construction.
Bridge applications require weather-resistant connections that withstand temperature cycling and vibration. Our robust connector design delivers long-term reliability in exposed installations.
Urban Lighting Networks
Streetlight and landscape lighting systems utilize our connectors for efficient circuit branching. The space-saving profile integrates seamlessly into pole bases and junction boxes.
Quick installation reduces labor costs across large-scale municipal lighting projects. Your crews complete more connections per shift with fewer specialized tools.
Installation Advantages
Time and Cost Efficiency
On-site installation takes minimal time compared to traditional methods. No cable cutting means no conductor preparation, splicing, or re-insulation work.
Reduced labor requirements lower installation costs. Smaller crews complete projects faster, improving your construction timeline and budget performance.
Enhanced Safety and Reliability
Sealed construction prevents conductor exposure to environmental contaminants. Electrical safety improves through comprehensive insulation and protection.
The connection system resists mechanical stress and vibration. Your installation maintains electrical integrity throughout decades of service life.
Space Optimization
Compact dimensions allow installation in confined spaces where traditional junction boxes cannot fit. Cable routing becomes more direct, reducing material costs.
The neat appearance meets aesthetic requirements in visible installations. Your projects achieve clean, professional results that satisfy architects and building owners.
Why Choose OUKAMU Piercing Connectors?
Twenty Years Specialising
Since 2007, OUKAMU has been specialised in the development of cable connection technologies. Our technical team has more than 150 national invention patents of novel connecting systems.
Core technologies are world-leading solutions with 20 years patent protection. You can't copy the proven designs that you are provided with.
Project Performance Demonstrated
Our devices are installed in more than 10,000 installations including landmark infrastructure projects. OUKAMU technology is applied in the Hong Kong-Zhuhai-Macao Bridge, several high-speed railroads and metro systems.
This track record indicates reliability in the most demanding of conditions. Your project is one of a portfolio of successful applications in a wide range of industries.
Manufacturing Standards of Quality
Production is performed under strict quality control standards to ensure constant performance. Each connector is tested and inspected electrically before shipping.
High-quality materials and meticulous production ensure a long service life. Once commissioned, your installation is maintenance free for years to come.
FAQ
Q: Can the products be used on all cable types?
A: Our connectors work with PVC, XLPE, and polyethylene insulated cables commonly used in low-voltage distribution. Compatibility covers single-core and multi-core configurations from 10mm to 300mm conductor sizes. Consult our technical team for specific cable compatibility confirmation.
Q: Does installation require specialized training?
A: Basic electrical installation skills are sufficient for connector installation. The design simplifies the process compared to traditional cable jointing. We provide installation guidelines and technical support to ensure proper application.
Q: How does the piercing mechanism affect cable insulation?
A: The controlled penetration design establishes electrical contact without compromising insulation integrity. Testing confirms long-term insulation resistance exceeds specifications. The sealed housing prevents moisture and contaminant entry at the connection point.
Q: What maintenance do installed connectors require?
A: The sealed, integrated design eliminates routine maintenance requirements. No periodic inspections or adjustments are necessary after proper installation. The robust construction ensures reliable operation throughout the cable system service life.
Q: Are the products suitable for outdoor installations?
A: Yes, our waterproof models with resin encapsulation achieve IP68 protection rating. These versions suit direct burial, cable wells, and exposed outdoor applications. The sealed construction prevents environmental degradation in harsh conditions.
Q: How do I select the correct connector model?
A: Selection depends on main cable size, branch cable size, and environmental conditions. Our specification charts guide model selection based on conductor dimensions. Contact our technical team for application-specific recommendations and support.
Contact Us for Expert Cable Connection Solutions
Ready to simplify your Piercing Connector cable branching projects? Contact OUKAMU today at info@okmbranchcable.com for technical specifications, pricing, and application support
