LV Insulation Piercing Connector For ABC Cable Fittings
Specialising in Insulation Piercing Connectors for 20 years
Used in industrial and civil buildings power distribution connection, tunnel underground corridor bridge, city lighting landscape lighting and so on.
Flame retardant performance UL94V0 class
Insulation resistance greater than 1000 megohm
Electrical strength withstand voltage more than 4kV
No need to cut off or interrupt the main cable, no need to strip the insulation layer of the cable core.
Can be branched and installed in any position
Small size, does not take up space
New design, cutting-edge technology, high-quality materials, long service life
Carrying capacity is 1.5~7 times that of the same size wire.
LV Insulation Piercing Connector For ABC Cable Fittings
Xi'an OUKAMU's LV Insulation Piercing Connector For ABC Cable Fittings represents two decades of specialized engineering excellence in cable connection technology. This innovative connector achieves UL94V0-class flame retardant performance with insulation resistance exceeding 1000 megohms and electrical strength withstanding over 4kV. The OCMXH-150/50 model delivers carrying capacity 1.5 to 7 times greater than conventional same-size wires, eliminating the need to cut main cables or strip insulation layers while enabling flexible branch installation at any position.
Why Choose OUKAMU Insulation Piercing Connectors?
Technical Innovation Without Equal
OUKAMU has over 150 national invention patents for its piercing connector technology, a pioneering global solution in the cable T-connection system. Our connectors do not compromise the integrity of your primary cable conductor, allowing full electrical continuity and mechanical strength.
Your install team will love the time saving design. No pre-measuring or customising necessary. Branch positions adjustable on site, thus decreasing labour costs and enhancing project efficiency.
Superior Protection Performance
Sealing Technology, Complete
IP68 level protection is provided by integrated resin sealed encapsulation on our devices. Waterproof construction keeps moisture out and avoids electrical leakage, making it reliable in cable wells, direct underground burial and other tough situations.
The flame retardant housing complies with the high safety standards for industrial and civil building applications. Now you have improved fire protection without compromising installation flexibility or electrical performance.
Long Term Reliability
These connectors are designed with a fully encapsulated cable core protection for maintenance free operation during their service life. Compact design saves space in tunnels, bridges, duct banks and overhead installations.
Parameters
|

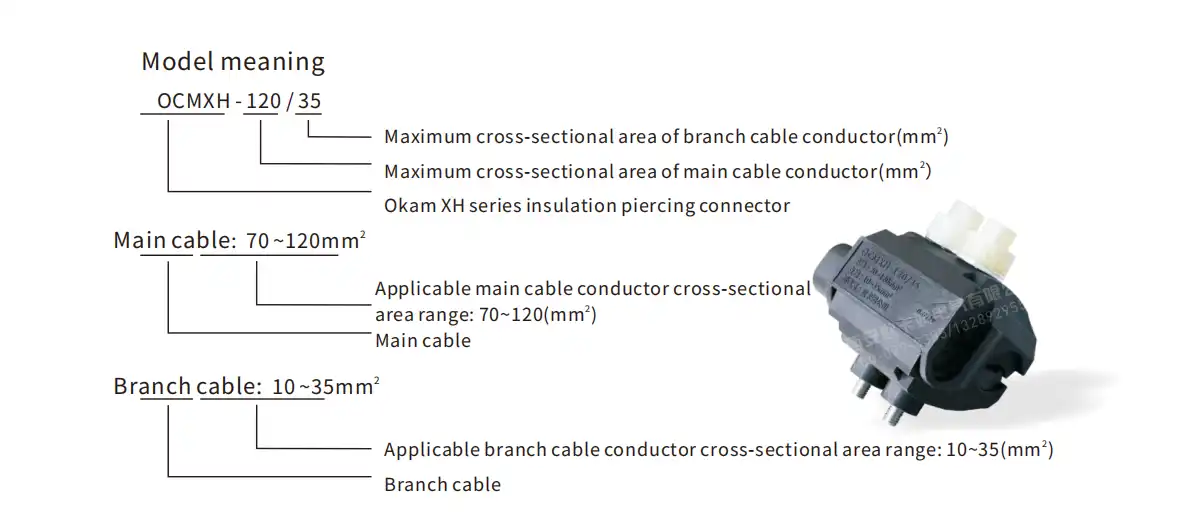

Model
|
Specifications(Conductor cross section mm²)
|
Piercing blade
|
Rated voltage(kV)
|
Split-load current(A)
|
Torque bolts
|
Size
L*W*H(mm)
|
||||
|
Main cable
|
Branch cable
|
Quantity
(pcs)
|
Teeth NO.(pcs)
|
Thickness
(mm)
|
Quantity
(pcs)
|
Breaking torque N.m
|
||||
|
OCMXH-16/6
|
1~16
|
1~6
|
8
|
24
|
1.5
|
0.6/1
|
51
|
1
|
11
|
33*30*45
|
|
OCMXH-35/10
|
6~35
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
13
|
46*42*66
|
|
OCMXH-95/10
|
16~95
|
1~10
|
8
|
24
|
1.3
|
0.6/1
|
71
|
1
|
15
|
46*42*71
|
|
OCMXH-35/35
|
10~35
|
10~35
|
16
|
48
|
2.0
|
0.6/1
|
150
|
1
|
15
|
46*41*75
|
|
OCMXH-95/35
|
50~95
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
17
|
57*63*78
|
|
OCMXH-120/35
|
70~120
|
10~35
|
24
|
72
|
1.5
|
0.6/1
|
150
|
2
|
19
|
57*63*83
|
|
OCMXH-150/50
|
70~150
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
21
|
61*70*85
|
|
OCMXH-240/50
|
95~240
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
63*70*90
|
|
OCMXH-300/50
|
120~300
|
10~50
|
24
|
72
|
1.5
|
0.6/1
|
190
|
2
|
23
|
65*70*95
|
|
OCMXH-95/95
|
50~95
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
19
|
55*57*78
|
|
OCMXH-150/95
|
70~150
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
24
|
60*65*85
|
|
OCMXH-240/95
|
120~240
|
50~95
|
24
|
72
|
2.0
|
0.6/1
|
290
|
2
|
25
|
67*77*98
|
|
OCMXH-240/240
|
120~240
|
120~240
|
24
|
72
|
2.5
|
0.6/1
|
540
|
2
|
29
|
76*79*100
|
Key Application Advantages
Flexible Installation No Cable Interruptions
This is a standard branch connection. It involves severing the main wire , which compromises its structural integrity . With OUKAMU's piercing technique you may connect branches without disturbing the main conductor. Your electrical distribution system is kept at full carrying capacity and physical strength.
The uncut design lowers possible points of failure. Experience fewer maintenance problems and longer cable life across your electrical system.
Economical Power Distribution
Our simple connecting system helps you save on material and installation costs. Your electrical infrastructure footprint is reduced to maximise the building utilisation efficiency with its space-saving design.
The easier to install, the less cost for labour, full stop. Your electricians can make connections quicker and with less specialist training than conventional jointing methods.

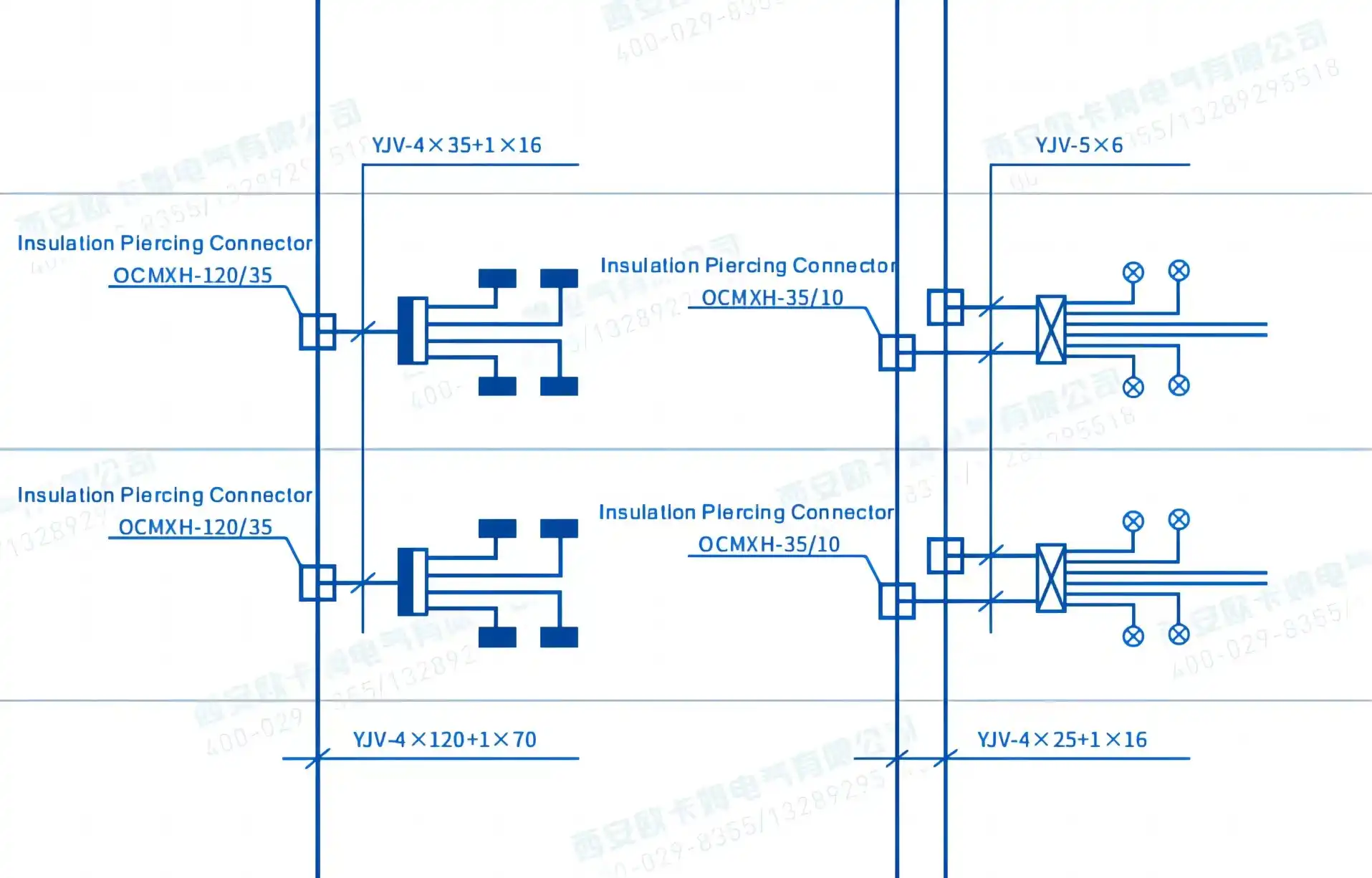

Wide-Ranging Applications
Industrial and Commercial Buildings
OUKAMU LV Insulation Piercing Connector For ABC Cable Fittings serves diverse power distribution requirements in manufacturing facilities, commercial complexes, and residential towers. The flame-retardant properties meet building code requirements while supporting rapid project completion.
Infrastructure Projects
Our connectors have proven performance in major infrastructure developments including metro systems, high-speed railways, and tunnel construction. Successfully deployed in over 10,000 projects, including the Hong Kong-Zhuhai-Macao Bridge and multiple metro lines, they demonstrate reliability under demanding conditions.
Outdoor and Underground Applications
Waterproof models with IP68 protection excel in street lighting, landscape illumination, and underground distribution networks. The sealed construction prevents environmental damage, ensuring consistent performance in harsh conditions.
Installation Process
Your installation team can complete connections efficiently following these simplified steps:
Preparation: Position the connector housing at your desired branch location. No cable cutting or insulation stripping is required for the main conductor.
Connection: The piercing mechanism creates secure contact with both main and branch cables. Integrated connectors accommodate the maximum branch cable size specified for your application.
Sealing: Apply the two-part resin system for models requiring enhanced environmental protection. The encapsulation provides electrical insulation and mechanical protection.
Verification: Conduct standard electrical testing to confirm proper connection integrity and insulation performance.
Proven Performance Record
Electrical engineers, designers, and developers across infrastructure sectors recognize OUKAMU's leadership in cable connection technology. Our products deliver consistent performance in challenging applications from Olympic facilities to transportation networks.
The combination of advanced materials, cutting-edge manufacturing, and rigorous quality control ensures every products meets exacting standards for safety and reliability.
FAQ
Q: Can I install these connectors on energized cables?
A: No, always de-energize circuits before installation. Follow all applicable electrical safety codes and lockout/tagout procedures during connector installation.
Q: What cable types are compatible with OUKAMU piercing connectors?
A: Our connectors work with PVC, XLPE, polyethylene insulated cables, and armored SWA cables. They're suitable for both single-core and multi-core configurations in polymeric cable systems.
Q: How do I select the correct connector size?
A: Match the connector model to your main cable cross-sectional area and branch cable requirements. Our selection charts specify compatible conductor sizes ranging from 10mm to 300mm for copper conductors.
Q: Do these connectors require periodic maintenance?
A: No, the sealed design provides maintenance-free operation. Once properly installed, the connectors require no routine servicing throughout their operational life.
Q: Are fire-resistant versions available?
A: Yes, we offer specialized fire-resistant cable joints designed for enhanced fire protection in critical applications. These maintain circuit integrity during fire conditions while providing the same installation advantages.
Q: Can I reposition a connector after installation?
A: Once the resin-sealed encapsulation cures, the connection becomes permanent. Plan branch positions carefully, though the flexible installation process allows adjustment before final sealing.
